Retort film
Description:

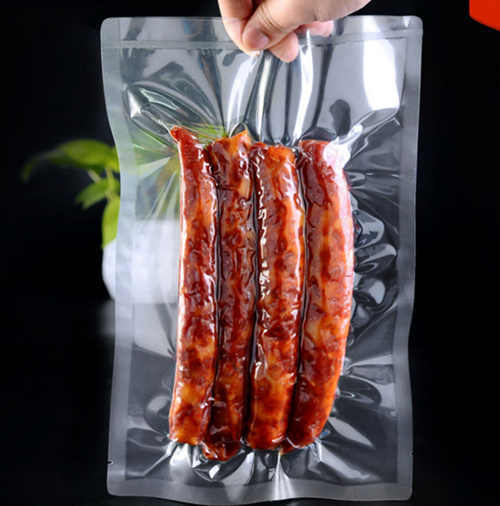

The Heavy-Duty RCPP Film has highest soft & rigid property, could met extremely penetrating & Irregular-sharpe bone, and also could deal with -25 ℃ cold environment. It is an co-extruded polypropylene film, one side be designed for aseptic/ retort packaging as the sealing layer, the other side treated with Corona to be laminat with other material. This retort CPP film has a property resistant 121 ℃ for 45 min and -10 ℃ resistance. It is very ideal material to pack sausage, meat products, and other high temperature asepticizing.
To laminate with other material for flexible packaging. Please tell the lamination purpose, the dry lamination, non-solvent lamination or PP extrusion lamination to get right option.
Key Feature:
-Highest Anti-puncture, met sharp-pointed.
-121 ℃ resistant for 45 min.
-cold resistance by -25 ℃.
-Excellent hermetic seal.
- Soft & rigid RCPP film.
- Hongrun
- CHINA
- 30 DAYS
- 200 MT/M
- Information
- Download
| PROPERTIES | TEST METHOD | UNIT | TYPICAL VALUE | |||
| THICKNESS | D-2673 | Microns | RCPP Plain 60 70 | TZ1RCPP anti puncture 60 70 | TZ3RCPP very anti-puncture 60 70 | |
FILM DENSITY Corona Level/Wetting tensile COEFF OF FRICTION (Dynamic) (Static) HAZE JOINTS NUMBER SECTION FLETNESS | D-792 D-2578 D-1894 D-1894 D-1003 International International | gm/cc Dyne/cm - - - m2 - | 0.91 0.91 38 38 0.168 0.148 0.172 0.156 3.97 4.05 ≤1 ≤2 mm | 0.91 0.91 38 38 0.133 0.124 0.136 0.125 4.65 4.44 ≤ 1 ≤ 2 mm | 0.91 0.91 38 38 0.136 0.132 0.147 0.135 4.47 4.95 ≤ 1 ≤ 2 mm | |
| TENSILE STRENGTH AT BREAK | MD* TD* | D-882 | MPa | 46.7 44.6 32.5 31.8 | 43.2 42.2 32.0 31.4 | 43.0 42.1 32.1 30.2 |
| ELONGATION AT BREAK | MD* TD* | D-882 | % | 636.7 642.1 738.4 722.5 | 765.4 745.3 872.3 865.7 | 743.2 743.6 865.4 846.9 |
| HEAT SEAL TEMPERATURE | 1s, 300KPa, 60℃ for under lay | ℃ | 151 153 | 151 153 | 151 153 | |
| HEAT SEALING STRENGTH | D-882 | N/15mm | ≥18.9 ≥20.0 | ≥16.3 ≥18.3 | ≥15.5 ≥17.0 | |
| DROP IMPACT | - | - | 440g 560g | 800g 920g | 1040g 1100g | |
| FINISH | No Folding, Air bubble fracture, Perforation, Scratches, Impurities, Oil. | |||||
| EXPLAINATION | *MD = MACHINE DIRECTION *TD = TRANSVERSE DIRECTION *Tensile Unit 'N/15mm' is China standard, in other areas, also use unit 'N/25mm', the testing date should be different. | |||||
